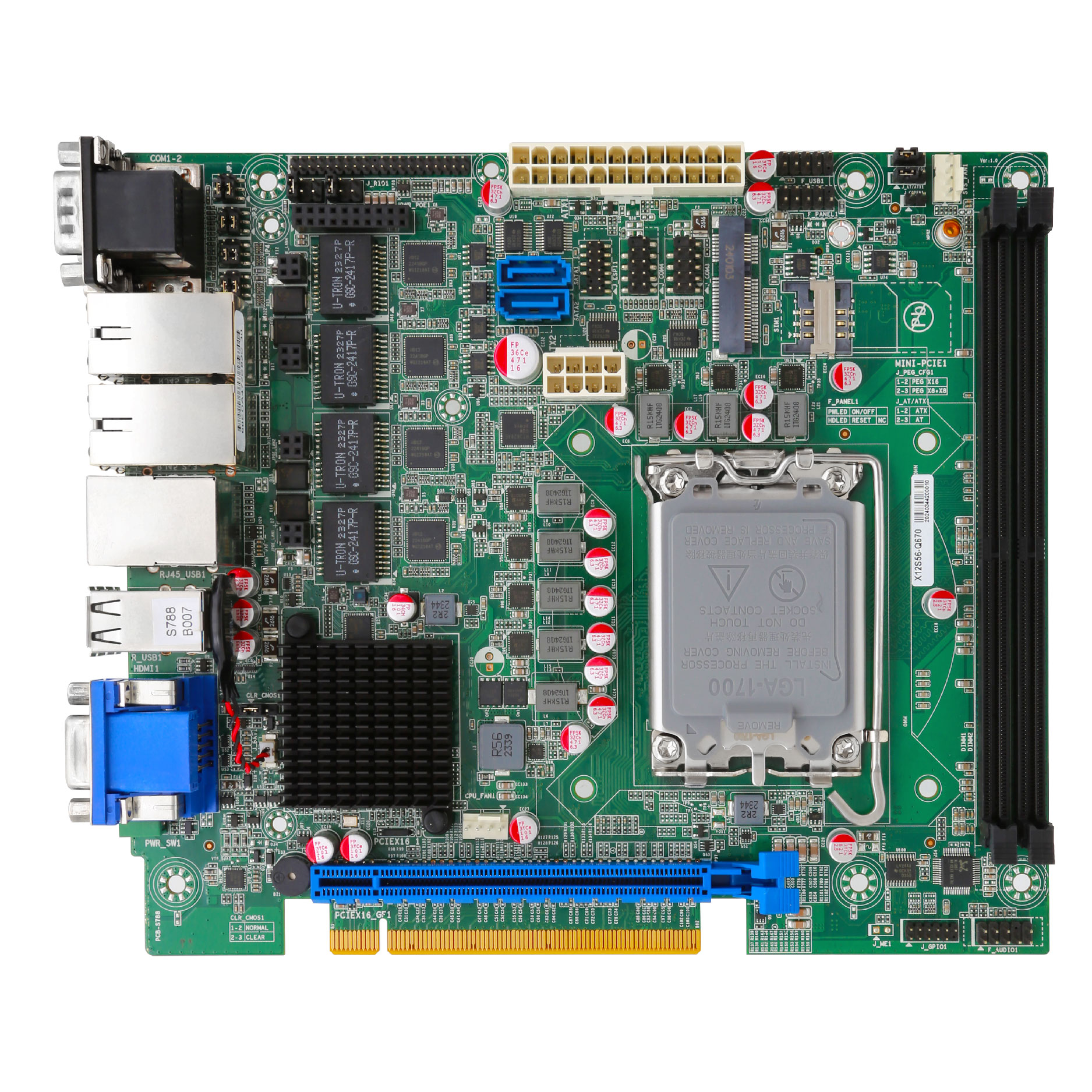

支持Intel 12/13/14代Core处理器，采用H610/Q670芯片，5*千兆网口，10*USB，1*PCIe x16
|
General |
|
|
CPU |
Intel<sup>®</sup>Core™ 12/13/14<sup>th</sup>Gen i3/i5/i7/i9, Pentium<sup>®</sup>, Celeron<sup>®</sup>Processors, LGA-1700 |
|
Chipset |
Intel<sup>®</sup>H610/Q670 Series, TDP 35W 8+8；65W 8+4 (i7-12700)
|
|
Memory |
DDR4-3200, 2*U-DIMM, up to 64GB
|
|
Storage |
2*SATA 3.0
1*M.2 (M-Key 2280, PCIe4.0 x2, NVMe)
|
|
Expansion |
1*PCIe4.0 x16 / 1*PCIe x16 GF
1*Mini-PCIe (PCIe3.0 x1+USB2.0, WiFi+4G)
|
|
BIOS |
AMI UEFI BIOS
|
| OS |
Windows 10/11 64bit, Linux
|
|

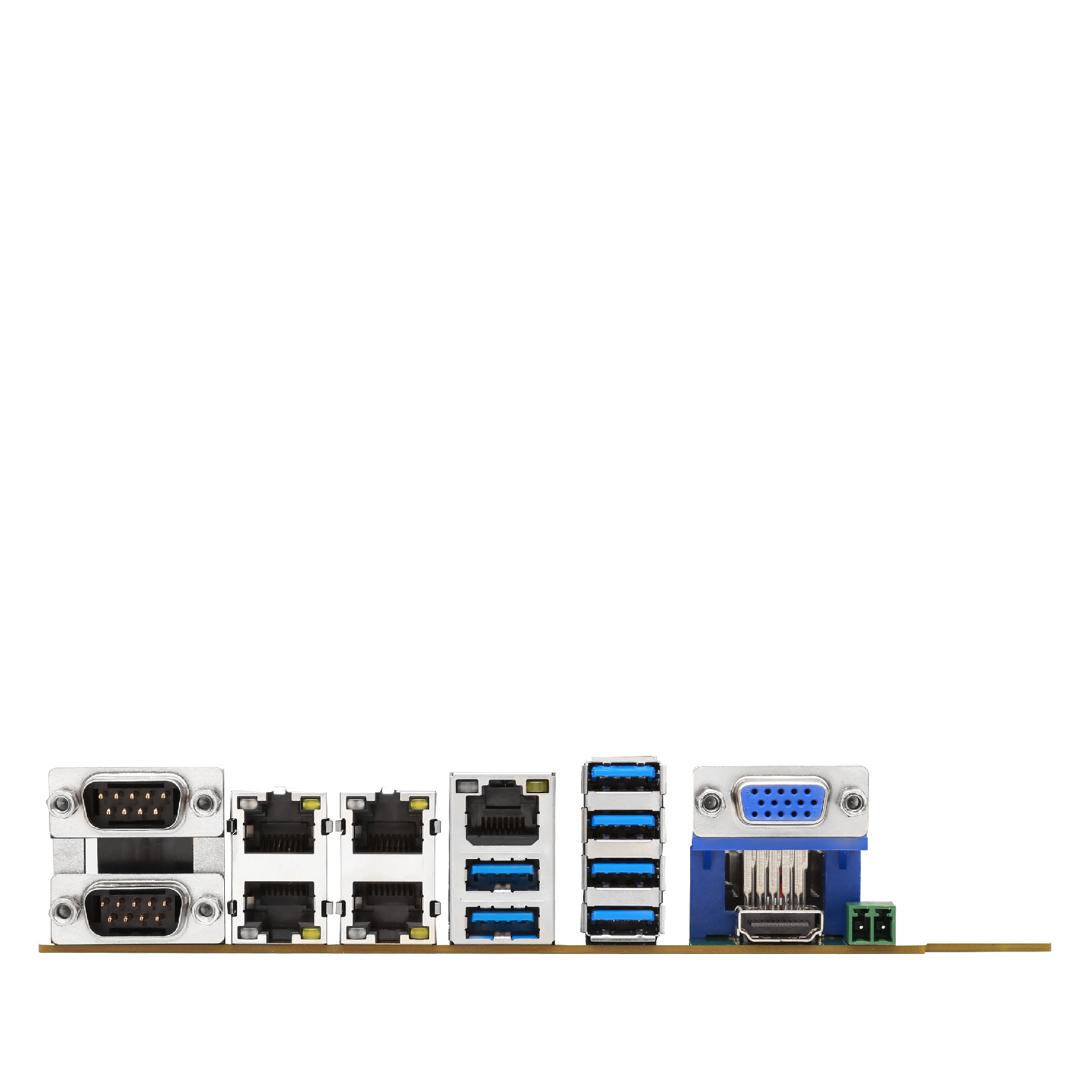

I/O |
|
|
Ethernet |
5*Intel<sup>®</sup>GbE Controller, RJ45
1*POE Power Connector (4*LAN support POE)
|
|
Serial |
2*RS232/RS422/RS485, 2*RS232, 2*TTL
|
|
USB |
6*USB 3.2 Gen1, 4*USB 2.0
|
|
Audio |
Realtek<sup>®</sup>HD Codec, with MIC/Line-out
|
|
GPIO |
8*Programmable GPIO
|
| Others |
1*EXT-Card (1*eSPI, 2*USB2.0, 2*UART TTL, 1*SMbus)
|
|
Display |
|
|
Display Interface |
1*HDMI: max 1920*1080@60Hz
1*VGA: max 1920*1080@60Hz
|
|
Mechanical & Environment |
|
|
Dimension |
180*210mm
|
|
Power Input |
ATX PSU
|
| Temperature |
Operation: 0℃~60℃, Storage: -20℃~75℃ |
|
Relative Humidity |
Operation: 10%~90%, Storage:5%~95%, non-condensing
|
