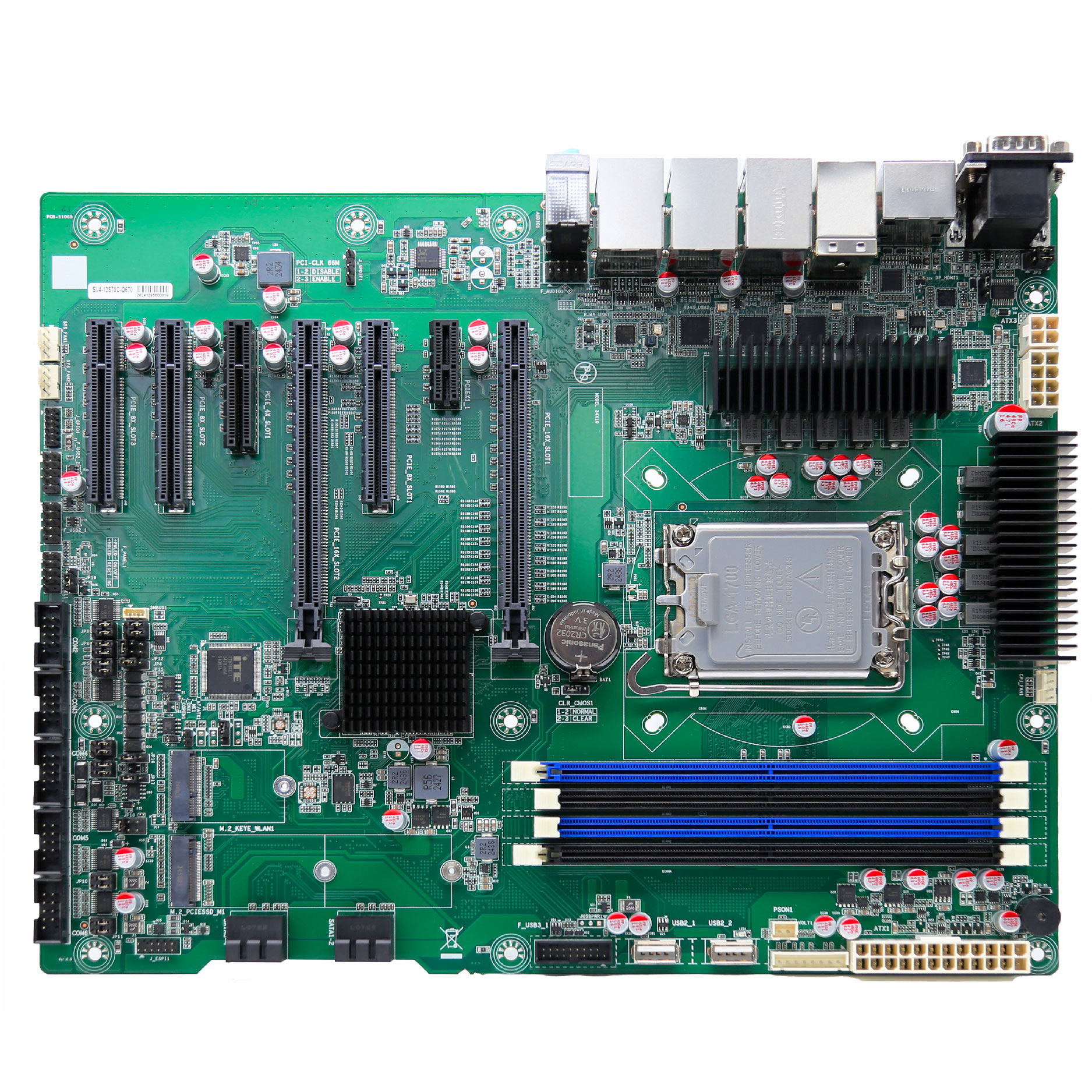

支持Intel 12/13/14代处理器，采用Q670芯片，5*千兆网口，13*USB，1*PCIe x16，4*PCIe x4
|
General |
|
|
CPU |
Intel<sup>®</sup>Core™ 12/13/14<sup>th</sup> Gen i3/5/7/9, Pentium<sup>®</sup>Processors, LGA-1700
|
|
Chipset |
Intel<sup>®</sup>Q670 Chipset, TDP 6W
|
|
Memory |
DDR5-5600, 4*U-DIMM, up to 192GB
|
|
Storage |
4*SATA 3.0
1*M.2 (M-Key 2280, PCIe4.0 x4/SATA, NVMe/SATA auto detect)
|
|
Expansion |
2*PCIe4.0 x16
4*PCIe4.0 x4
1*PCI, 1*M.2 (E-Key 2230, PCIe3.0 x1 + USB2.0, WIFI + Bluetooth)
|
|
BIOS |
AMI UEFI BIOS
|
| OS |
Windows 10/11 64bit, Linux
|
| TPM |
Support TPM2.0 module
|
|
I/O |
|
|
Ethernet |
5*Intel<sup>®</sup>GbE Controller, RJ45
|
|
Serial |
4*RS232, 1*RS232/RS485/RS422, 1*RS232/RS485
|
|
USB |
8*USB 3.2 Gen1, 5*USB 2.0
|
|
Audio |
Realtek<sup>®</sup>HDA Codec, with MIC/SPDIF/Line-out/Line-in
|
|
GPIO |
8*Programmable GPIO
|
| Others |
1*SMBus, 1*Case Open
|
|
Display |
|
|
Display Interface |
1*HDMI: max 4096*2160@60Hz
1*VGA: max 1920*1200@60Hz
1*DP: max 4096*2160@60Hz
|
|
Multiple Display |
Triple |
|
Mechanical & Environment |
|
|
Dimension |
305*244mm
|
|
Power Input |
ATX PSU
|
| Temperature |
Operation: 0℃~60℃, Storage: -20℃~75℃ |
|
Relative Humidity |
Operation: 10%~90%, Storage: 5%~95%, non-condensing
|
