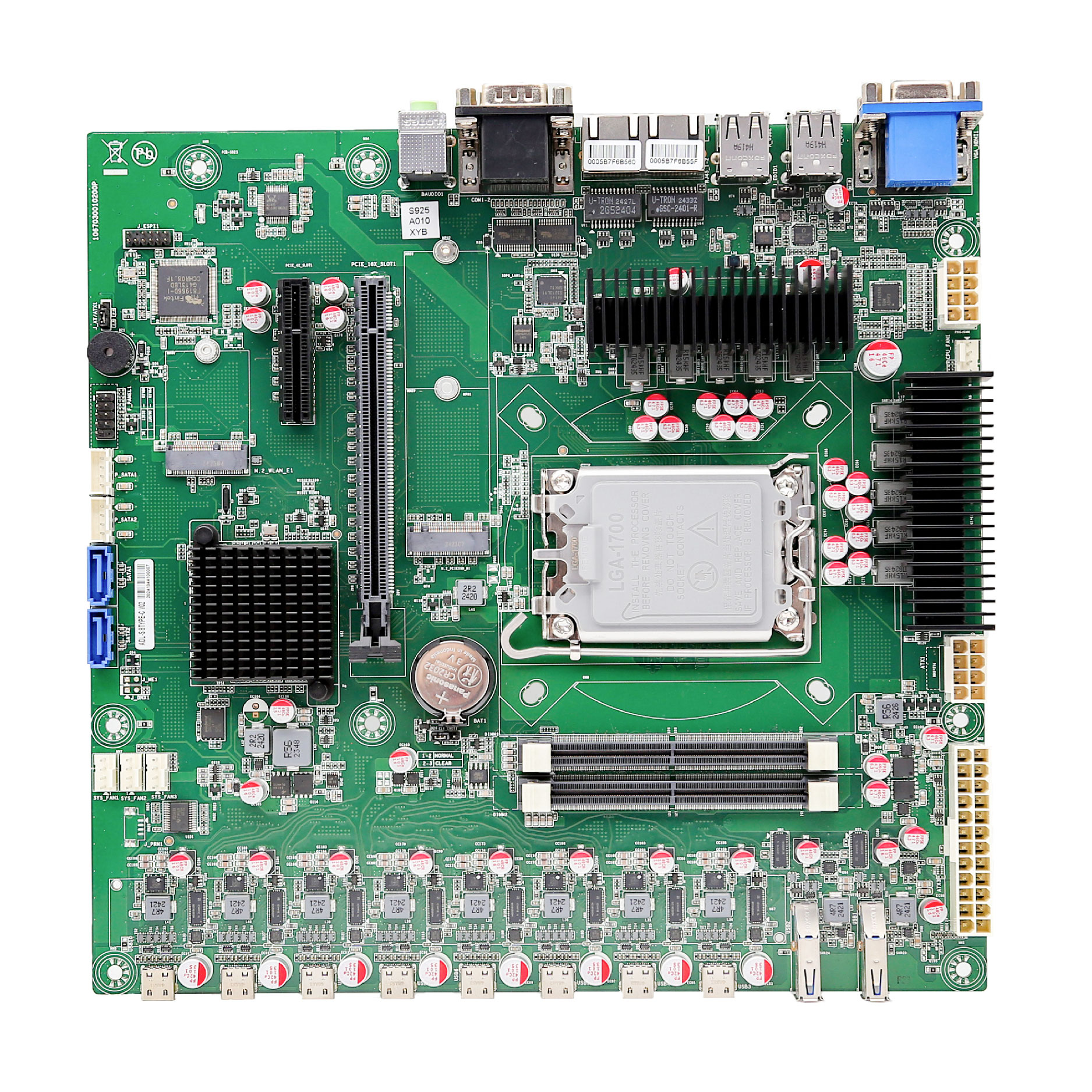

Support Intel Alder Lake-S Processors, 2*DDR5, 2*SATA 3.0, 2*M.2, 2*GbE LAN, 12*USB, 2*COM
|
General |
|
|
CPU |
Support Intel® Alder Lake-S processors, LGA1700 |
|
Chipset |
Intel® Q670 |
|
Memory |
2*DDR5-4000/4400/4800 SO-DIMM Memory, up tp 64GB |
|
Storage |
2*SATA 3.0, 1*M.2 (Key-M, 2280, PCIe x4 Gen4/SATA, NVMe SSD) |
|
Expansion |
1*M.2 (Key-E, 2230, PCIe+USB 2.0, support WiFi+ Bluetooth) |
|
BIOS |
AMI UEFI BIOS |
| OS |
Windows 10/11 64bit, Linux |
|

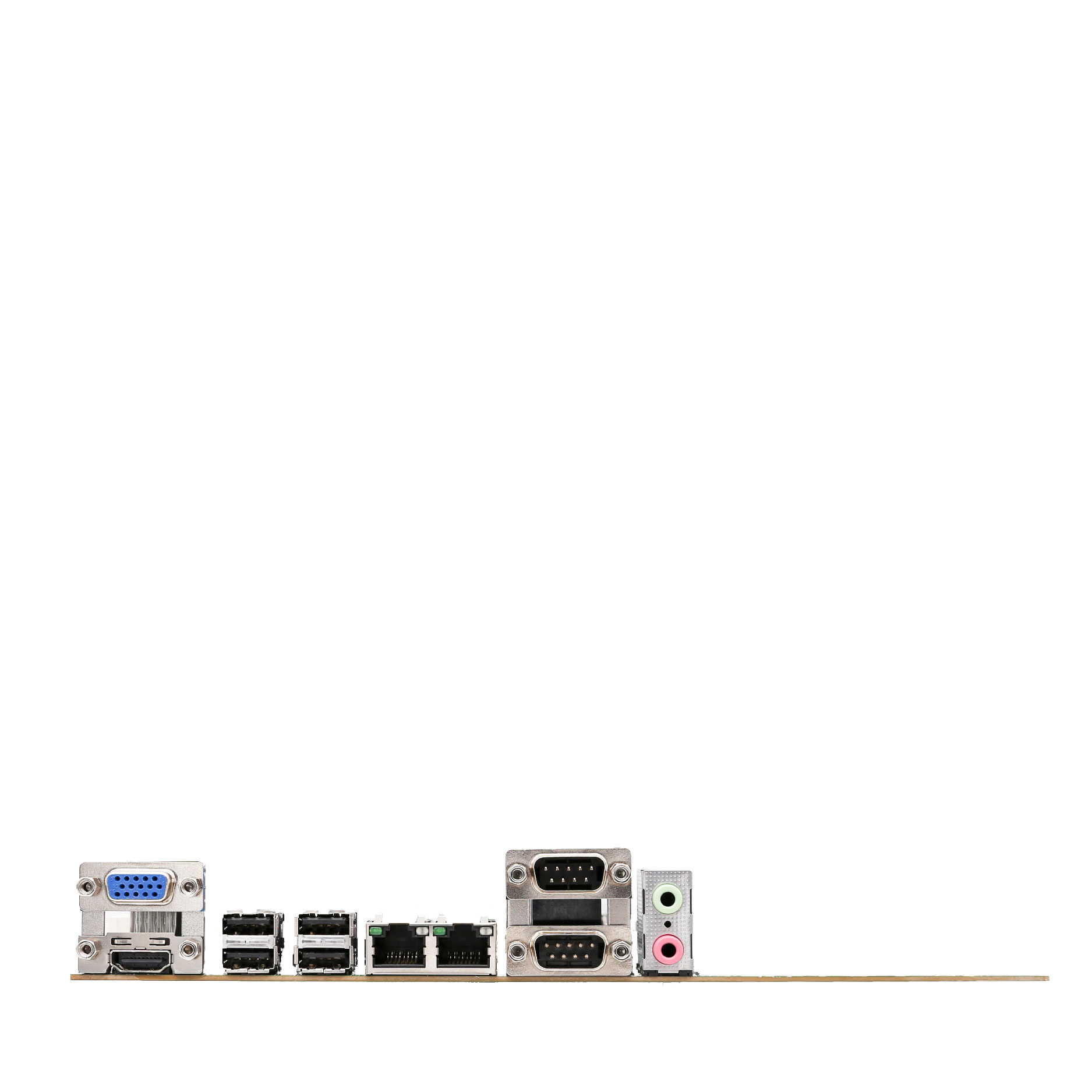

I/O |
|
|
Ethernet |
2*Intel GbE LAN |
|
Serial |
2*RS232 |
|
USB |
8*USB 3.2, 4*USB 2.0 |
| Audio |
Audio HDA codec with Line-out+MIC |
|
Display |
|
|
Display Interface |
1*HDMI, max resolution up to 4096*2160@60Hz 1*VGA, max resolution up to 1920*1200@60Hz |
|
Mechanical & Environment |
|
|
Dimension |
Mini-ITX (170*170mm) |
|
Power Input |
ATX PSU Power Input |
| Temperature |
Operation: 0℃~60℃, Storage: -25℃~75℃ |
|
Relative Humidity |
5%~95%, non-condensing |
