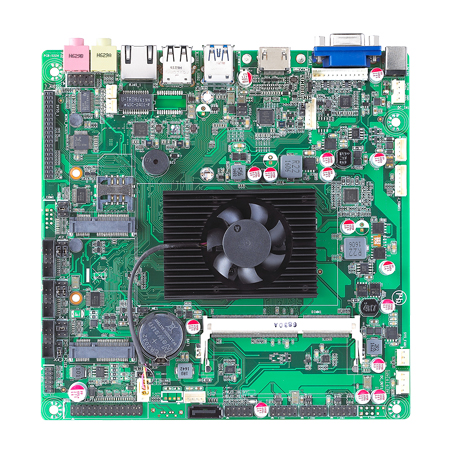

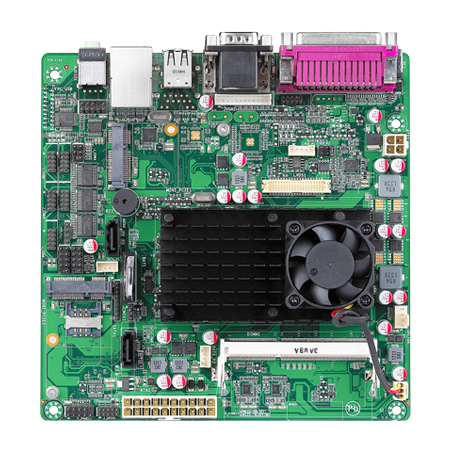

Intel® 3rd Gen Core i3-3217U CPU with HM76, 6*COM, 1*LAN, 2*Mini-PCIe, 1*Cash Drawer, DC 12V Input

Intel® 3rd Gen Core i3-3217U CPU with Intel HM76 chipset

6*COM, 7*USB, 1*1000 Mbps LAN, 1*RJ11

Supports dual display of VGA and LVDS

2*Mini-PCIe (Supports 1*mSATA, 1*Wifi+3G/4G)

Supports DC 12V Input

Driver Downloads

Specification

General
CPU	Intel^® Core^TM i3-3217U CPU,Dual-core, 1.8 GHz, TDP 17W
Chipset	Intel^® HM76 Chipset, TDP 4.1W
Memory	Up to 8 GB DDR3 1600/1333 MHz, 1*SO-DIMM
Storage	1SATA 3.0, 1SATA 2.0, 1*mSATA
Expansion Interface	2Mini-PCIe (1mSATA Supported, 1*Wifi/3G/4G Supported)
BIOS	AMI UEFI BIOS
System	Windows XP/7/8.1/10, Linux

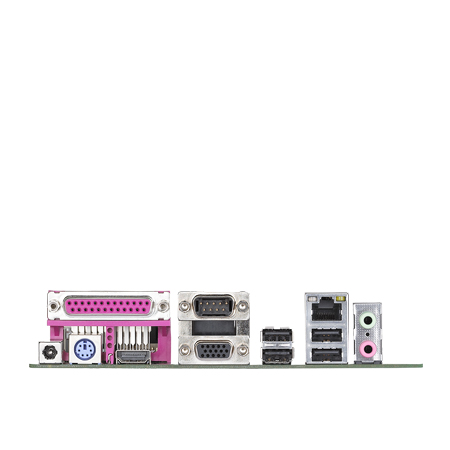

I/O Interface
Serial Port	6*RS232 (COM6 TTL optional)
USB	7USB 2.0 (4on rear I/O, 3*header)
Ethernet	1*Realtek^® PCI-E LAN for 1000Mbps
Audio	Realtek^® ALC662 5.1 channelHDA Codec, supports MIC/Line-out Ports 1*Amplifier
PS/2	1*PS/2 (Keyboard and Mouse Supported)
Parallel Port	1*LPT
GPIO	8 programmable GPIO
Feature Interface	1*RJ11 (Cash Drawer)
Display
Display Interface	1VGA: max resolution up to 20481536@75Hz 1LVDS: Dual channel 24 bit, max resolution up to 19201200@60Hz
Multiple Display	Dual
Mechanical & Environment
Dimension	Mini-ITX, 170*170mm
Power Input	DC 12V
Temperature	Operation: 0℃~60℃, Storage: -25℃~75℃
Relative Humidity	Operation: 10%~90%, Storage: 5%~95%, non-condensing
