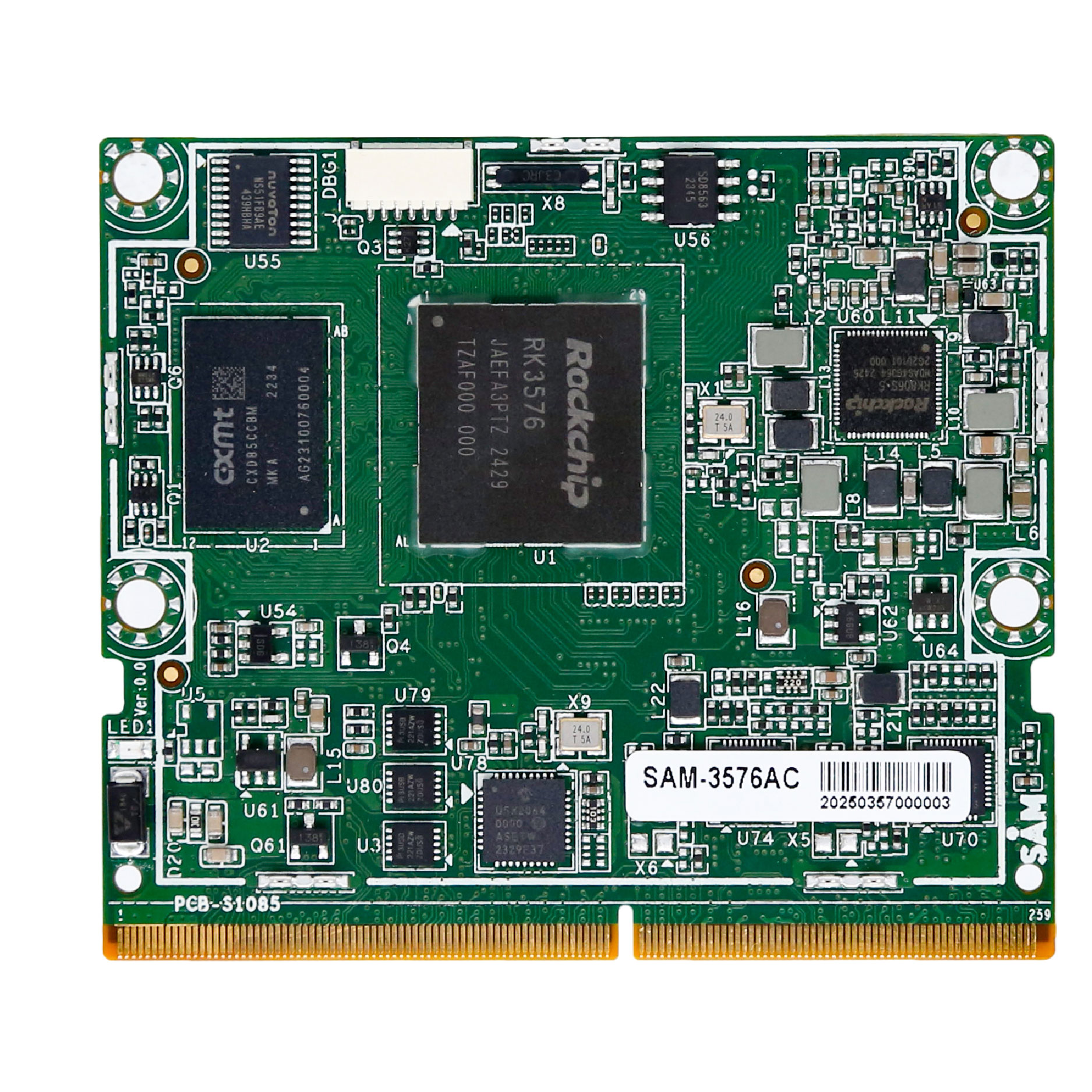

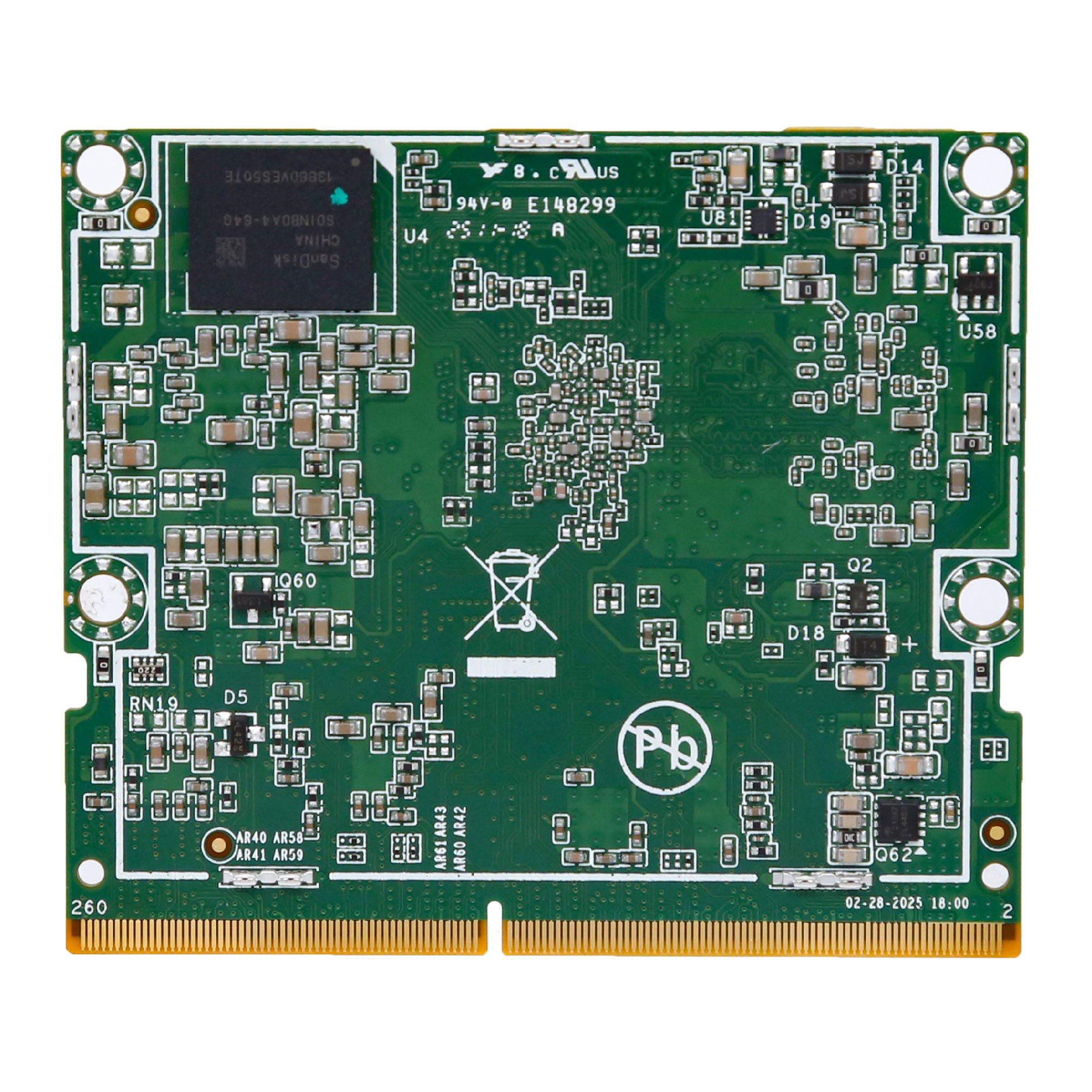

ARM Compute Module, Rockchip RK3576 CPU
|
General |
|
|
CPU |
ARM Rockchip® RK3576, Quad-Core Cortex-A72+Quad-Core Cortex-A53 up to 2.2GHz, 6 TOPS |
|
GPU |
Mail-G52 MC3 |
|
Memory |
LPDDR4X, 4/8/16GB, on board |
|
Storage |
1*eMMC 16/32/64/128/256G |
|
System |
Android 14, Linux |
|
I/O |
|
|
Ethernet |
2*Realtek® GbE Controller |
|
High Speed Signa |
2*PCIe2.0 x1/ SATA, 1*USB 3.2 Gen1 (OTG) |
|
Serial |
6*UART |
|
USB |
4*USB2.0 |
|
GPIO |
17*GPIO |
|
Others |
1*I2S, 1*SPI, 1*SDMMC, 2*I2C, 1*TP_I2C, 2*CAN, 1*MIPI-CSI |
|
Display |
|
|
Display Interface |
1*eDP, 1*HDMI 2.0, 1*MIPI-DSI |
|
Mechanical & Environment |
|
|
Dimension |
69.6*60mm |
|
Power Input |
5V |
| Temperature |
Operation: 0℃~60℃, Storage: -20℃~75℃ |
|
Relative Humidity |
Operation: 10%~90%, Storage: 5%~95%, non-condensing |
