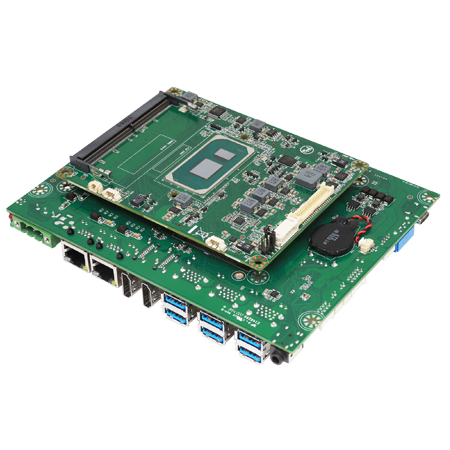

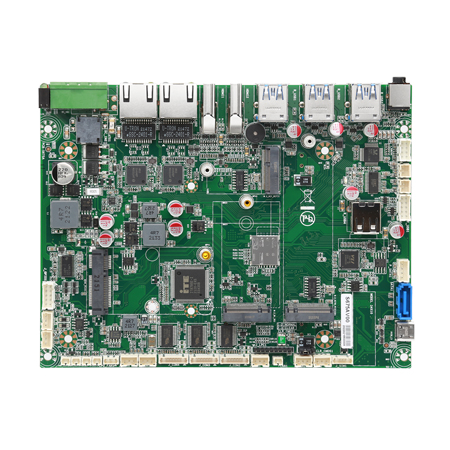

11th Gen Intel Core/ Celeron CPU (Tiger Lake), 6*USB 3.0, 2*LAN, 6*COM, 2*M.2, 2*HDMI, 2*CAN
|
General |
|
|
CPU |
Intel® 11th CoreTM i7-1165G7, i5-1135G7, i3-1115G4 28W default, 12W/15W BIOS optional or Celeron® 6305E CPU, 15W |
|
Memory |
DDR4-3200, 2*SO-DIMM, up to 64 GB |
|
Storage |
1*SATA 3.0 1*M.2 (Key-M, 2280, PCIe x2 NVMe SSD) |
|
Expansion Interface |
1*Mini-PCIe (3G/4G) 1*M.2 (Key-E, 2230, PCIe+USB 2.0, Wifi+BT) 1*M.2 (Key-B, 3052, USB 3.0/PCIe + SATA/PCIe) |
|
BIOS |
AMI UEFI BIOS |
|
System |
Windows 10, Linux |
|

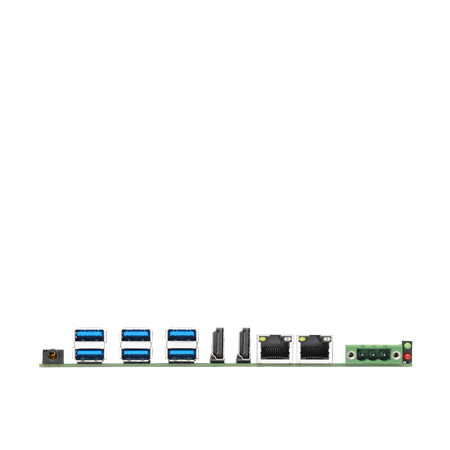

I/O Interface |
|
|
Ethernet |
2*Intel® 1Gbps PCIe Ethernet Controller, RJ45 |
|
Serial |
6*RS232 |
|
USB |
6*USB 3.0, 2*USB 2.0 |
| CAN |
2*CAN Bus |
|
Audio |
Realtek® 5.1 channel HDA Codec, with MIC/Line-out |
|
Display |
|
|
Display Interface |
2*HDMI: max resolution up to 4096*2160@30Hz |
|
Multiple Display |
Dual |
|
Mechanical & Environment |
|
|
Dimension |
169*130mm |
|
Power Input |
DC 9-36V |
| Temperature |
Operation: 0℃~60℃, Storage: -25℃~75℃ |
|
Relative Humidity |
Operation: 10%~90%, Storage: 5%~95%, non-condensing |
