Smart Kiosk Box Computer based on Intel SKM, dedicated to Kiosks in Banking, Transportation, Healthcare and Public segments.

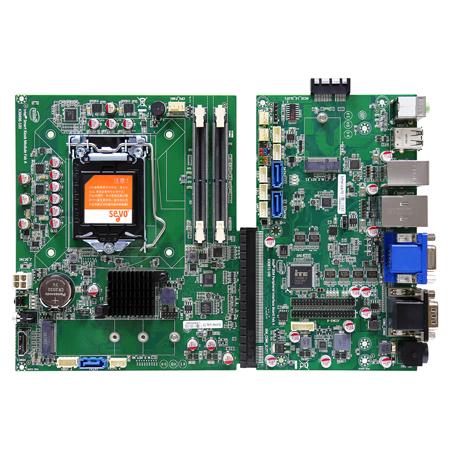

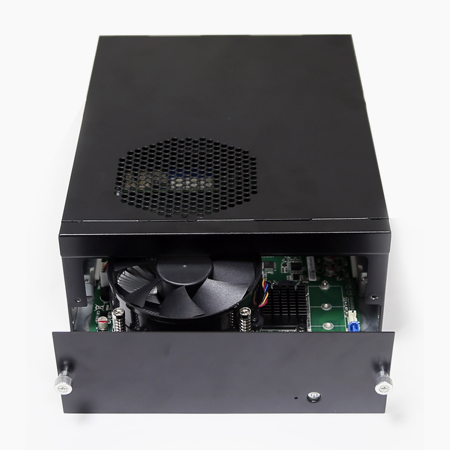

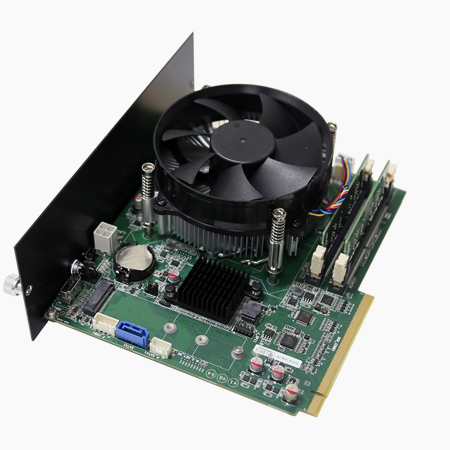

Separate compute module from IO docking board, Easier maintenance and upgradability.

compute module can fits different IO expansion module to met wide range of Kiosk application.

Support Intel® 6/7th Gen Core i3/i5/i7 & Pentium®/ Celeron® Processor (Skylake/ Kaby Lake) with Intel® Q270 Chipset

2*SO-DIMM, Up to 32 GB DDR4 1866/2133 MHz

1*M.2 Key M 2280 (NVME SSD), 1*M.2 Key E 2230 (WiFi/BT), 1*PCI-E 1X

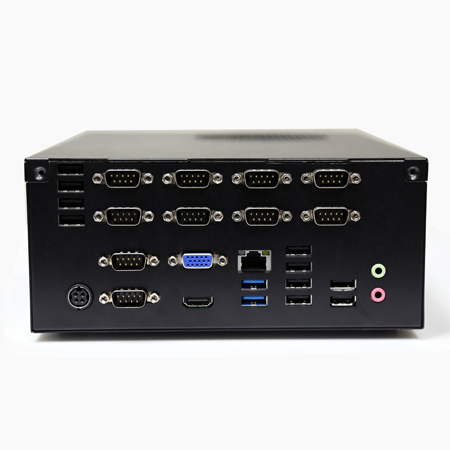

10*COM, 2*USB 3.0, 10*USB 2.0, 2*SATA 3.0

1*Intel I219-LM GbE, supports Intel® vPro™ Technology

Supports Dual display of VGA and HDMI

Driver Downloads

Specification

General
CPU	Intel^® Pentium^®/ Celeron^®/ 6^th and 7^th Generation Core^TM i3/i5/i7 CPU, LGA1151
Chipset	Intel^®Q270 Chipset, TDP 6W
Memory	Up to 32 GB DDR4 1866/2133 MHz, 2*SO-DIMM
Storage	2*SATA 3.0
Expansion Interface	1M.2 Key M 2280 (NVME SSD), 1M.2 Key E 2230 (WiFi/BT), 1*PCI-E 1X
BIOS	AMI UEFI BIOS
System	Window 10 64-bit, Linux
I/O Interface
Serial Port	10*RS232
USB	2USB 3.0, 10USB 2.0
Ethernet	1*Intel^® PCI-E LAN for 1000Mbps
Audio	Realtek^® ALC662 5.1 channel HDA Codec, supports MIC/Line-out Ports
Feature Interface	null
Display
Display Interface	1VGA: max resolution up to 19201200@60Hz 1HDMI: max resolution up to 19201200@60Hz
Multiple Display	Dual
Mechanical & Environment
Dimension	259.1mm201.4mm 89.6mm
Power Input	DC 12V
Temperature	Operation: 0℃~60℃, Storage: -25℃~75℃
Relative Humidity	Operation: 10%~90%, Storage: 5%~95%, non-condensing
