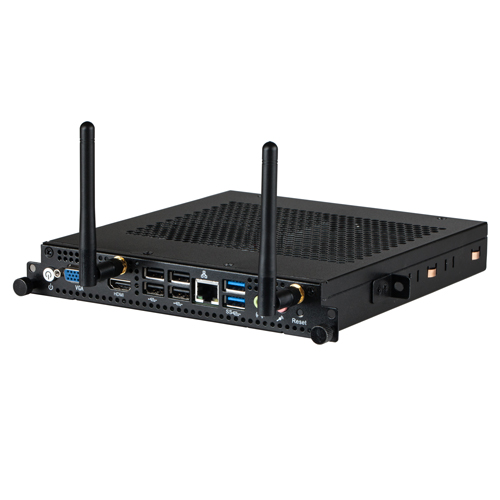

Intel® Kaby Lake-U Celeron 3865U CPU, OPS, Dual display of VGA and HDMI, 4K UHD, Wifi+BT, DC 12V Input
|
General |
|
|
CPU |
Intel® Kaby Lake-U Celeron® 3855U CPU, Dual-core, 1.8 GHz,TDP 15W |
|
Chipset |
Null |
|
Memory |
Up to 8 GB DDR3L 1600 MHz, 1*SO-DIMM |
|
Storage |
1*SATA 3.0 (22Pin), 1*mSATA |
|
Expansion Interface |
2*Mini-PCIe (1*mSATA Supported,1*Wifi/3G/4G Supported) 1*OPC Port |
|
BIOS |
AMI UEFI BIOS |
|
System |
Windows 10 x64, Linux |
|
I/O Interface |
|
|
Serial Port |
1*RS232 |
|
USB |
2*USB 3.0+2*USB 2.0 (rear I/O), 1*USB 3.0+2*USB 2.0 (OPS) |
| Ethernet |
1*Realtek® PCI-E LAN for 1000Mbps |
|
Audio |
Realtek® ALC662 5.1 channel HDA Codec, supports MIC/Line-outPorts |
|
PS/2 |
Null |
|
Parallel Port |
Null |
|
GPIO |
Null |
|
Feature Interface |
1*Antenna Terminal Connector |
|
Display |
|
|
Display Interface |
1*VGA: max resolution up to 1920*1200@60Hz |
|
Multiple Display |
Dual |
|
Mechanical & Environment |
|
|
Dimension |
170*190mm |
|
Power Input |
DC 12V |
| Temperature |
Operation: 0℃~60℃, Storage: -25℃~75℃ |
|
Relative Humidity |
Operation: 10%~90%, Storage: 5%~95%, non-condensing |
