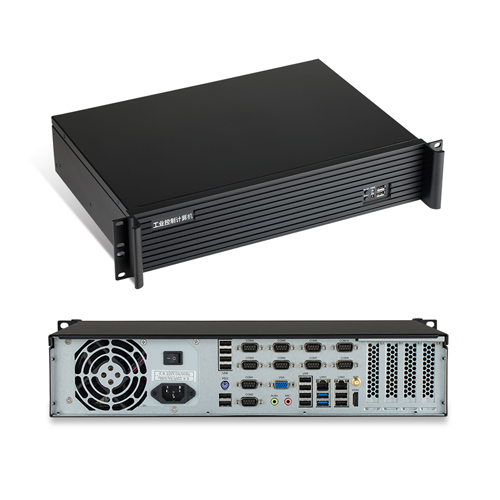

Intel® Kaby Lake-U Celeron® 3865U CPU, 10*COM, 14*USB, 2*Mini-PCIe
|
General |
|
|
CPU |
Intel® Kaby Lake-U Celeron® 3865U CPU, Dual-core,1.8 GHz,TDP 15W |
|
Chipset |
Null |
|
Memory |
Up to 8 GB DDR3L 1600/1333 MHz, 1*SO-DIMM |
|
Storage |
1*SATA 3.0, 1*mSATA |
|
Expansion Interface |
1*PCI-E 16X (4X Signal) 2*Mini-PCIe (1*mSATASupported, 1*Wifi/3G/4G Supported) |
|
BIOS |
AMI UEFI BIOS |
|
System |
Windows7/8/10, Linux |
|
I/O Interface |
|
|
Serial Port |
10*RS232 |
|
USB |
2*USB 3.0, 12*USB 2.0 |
| Ethernet |
2*Realtek® PCI-E LAN for 1000Mbps |
|
Audio |
Realtek® ALC662 5.1 channel HDA Codec, supports MIC/Line-outPorts |
|
PS/2 |
1*PS/2 |
|
Parallel Port |
Null |
|
GPIO |
8 programmable GPIO |
|
Feature Interface |
Null |
|
Display |
|
|
Display Interface |
1*VGA: max resolution up to 1920*1200 1*HDMI:max resolution up to 4096*2160 |
|
Multiple Display |
Triple |
|
Mechanical & Environment |
|
|
Power Input |
ATX PSU or DC 12V |
| Temperature |
Operation: 0℃~60℃, Storage: -25℃~75℃ |
|
Relative Humidity |
Operation: 10%~90%, Storage: 5%~95%, non-condensing |
