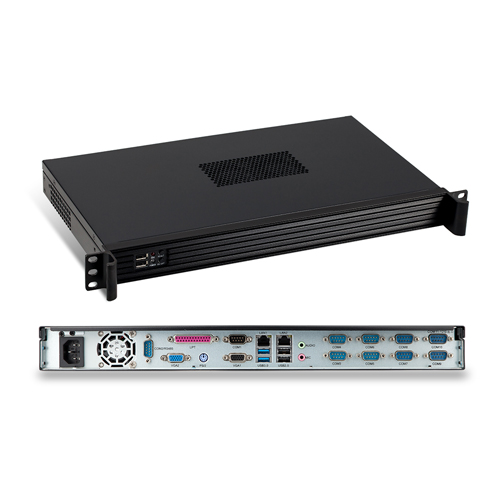

Intel Kaby Lake 7th Gen Core i3/i5/i7 CPU (LGA1151) with H270, 12*COM, 10*USB, 2*LAN, 1*Mini-PCIe
|
General |
|
|
CPU |
Intel® Kaby Lake Pentium®/ Celeron®/ 7th Generation CoreTM i3/i5/i7 CPU, LGA1151 |
|
Chipset |
Intel® H270 Chipset, TDP 6W |
|
Memory |
Up to 32 GB DDR4 2133/1866 MHz, 2*DIMM |
|
Storage |
2*SATA 3.0, 1*mSATA |
|
Expansion Interface |
1*Mini-PCIe（mSATA or Wifi/3G Supported） |
|
BIOS |
AMI UEFI BIOS |
|
System |
Windows 10 x64, Linux |
|
I/O Interface |
|
|
Serial Port |
12*RS232 |
|
USB |
2*USB 3.0, 8*USB 2.0 (4*on rear I/O, 6*header) |
| Ethernet |
2*Realtek® PCI-E LAN for 1000Mbps |
|
Audio |
Realtek® ALC662 5.1 channel HDA Codec, supports MIC/Line-outPorts |
|
PS/2 |
1*PS/2 (Keyboard and Mouse Supported) |
|
Parallel Port |
1* LPT |
|
GPIO |
8 programmable GPIO |
|
Feature Interface |
Null |
|
Display |
|
|
Display Interface |
2*VGA：max resolution up to 1920*1200 |
|
Multiple Display |
Dual |
|
Mechanical & Environment |
|
|
Power Input |
ATX PSU |
| Temperature |
Operation: 0℃~60℃, Storage: -25℃~75℃ |
|
Relative Humidity |
Operation: 10%~90%, Storage: 5%~95%, non-condensing |
