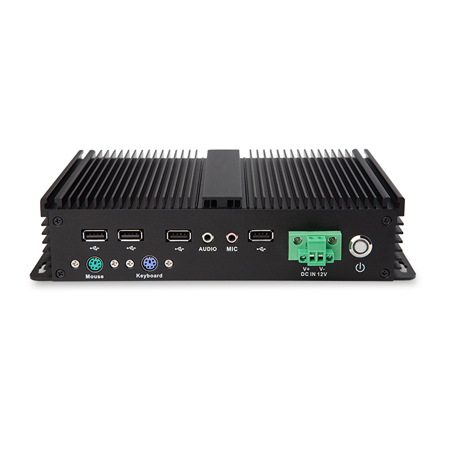

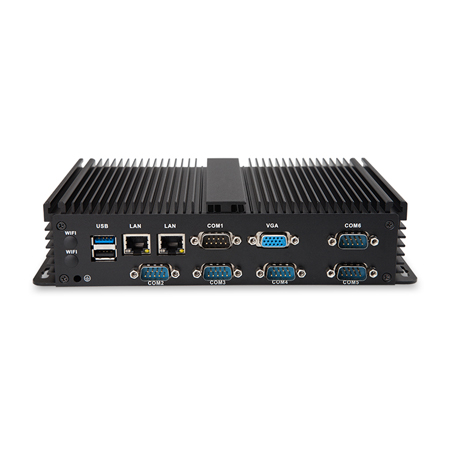

Intel® Kaby Lake-U 7th Gen Core i5-7200U CPU, fanless design, with 6*COM, 2*1000 Mbps Intel LAN, 2*Mini-PCIe
|
General |
|
|
CPU |
Intel® KabyLake-U CoreTM i5-7200U CPU, Dual-core, up to 3.10GHz, TDP 15W |
|
Chipset |
Null |
|
Memory |
Up to 8 GB DDR3L 1600 MHz, 1*SO-DIMM |
|
Storage |
1*SATA 3.0, 1*mSATA |
|
Expansion Interface |
2*Mini-PCIe (1*mSATA Supported, 1*Wifi/3G/4G Supported) |
|
BIOS |
AMI UEFI BIOS |
|
System |
Windows 10 x64, Linux |
|
I/O Interface |
|
|
Serial Port |
6*RS232 (COM6 RS485 optional) |
|
USB |
2*USB 3.0, 6*USB 2.0 (2*on rear I/O, 6*header) |
| Ethernet |
2*Intel® PCI-E LAN for 1000Mbps |
|
Audio |
Realtek® ALC662 5.1 channel HDA Codec, supports MIC/Line-outPorts |
|
PS/2 |
1*PS/2 (Keyboard and Mouse Supported) |
|
Parallel Port |
Null |
|
GPIO |
8 programmable GPIO |
|
Feature Interface |
1*SVIO Connector |
|
Display |
|
|
Display Interface |
1*VGA: max resolution up to 1920*1200 |
|
Multiple Display |
Null |
|
Mechanical & Environment |
|
|
Power Input |
DC 9-28V |
| Temperature |
Operation: 0℃~60℃, Storage: -25℃~75℃ |
|
Relative Humidity |
Operation: 10%~90%, Storage: 5%~95%, non-condensing |
