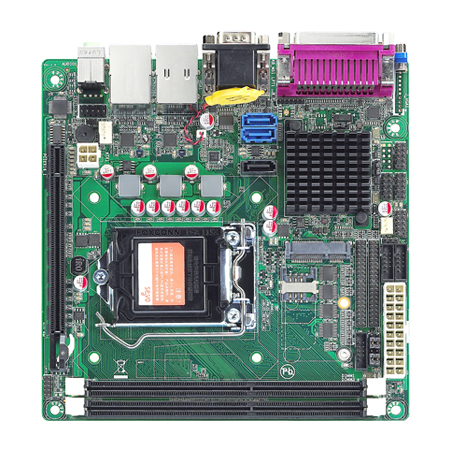

Intel® 4th Gen Core i3/i5/i7 CPU (LGA1150) with H81, 12*COM, 2*LAN, 1*PCI-E 16X, 1*Mini-PCIe
|
General |
|
|
CPU |
Intel® Pentium®/ Celeron®/ 4th Generation CoreTM i3/i5/i7 CPU, LGA1150 |
|
Chipset |
Intel® H81 Chipset, TDP 4.1W |
|
Memory |
Up to 16 GB DDR3 1600/1333 MHz, 2*DIMM |
|
Storage |
2*SATA 3.0, 1*SATA 2.0 |
|
Expansion Interface |
1*PCI-E 16X, 1*Mini-PCIe (Wifi/3G/4G Supported) |
|
BIOS |
AMI UEFI BIOS |
|
System |
Windows 7/8/10, Linux |
|

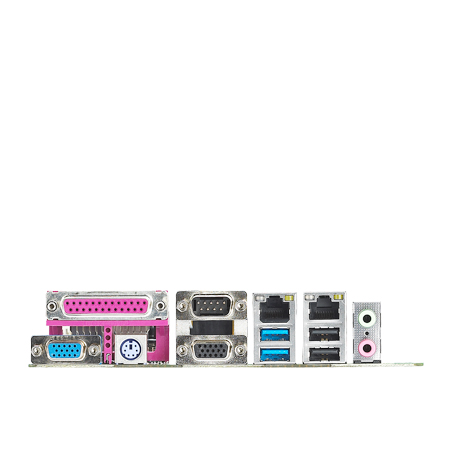

I/O Interface |
|
|
Serial Port |
12*RS232 (COM2 RS485 optional) |
|
USB |
2*USB 3.0, 7*USB 2.0 (4*on rear I/O, 5*header) |
| Ethernet |
2*Realtek® PCI-E LAN for 1000Mbps |
|
Audio |
Realtek® ALC662 5.1 channel HDA Codec, supports MIC/Line-outPorts |
|
PS/2 |
1*PS/2 (Keyboard and Mouse Supported) |
|
Parallel Port |
1* LPT |
|
GPIO |
8 programmable GPIO |
|
Feature Interface |
Null |
|
Display |
|
|
Display Interface |
2*VGA: max resolution up to 1920*1200@60Hz |
|
Multiple Display |
Dual |
|
Mechanical & Environment |
|
|
Dimension |
Mini-ITX, 170*170mm |
|
Power Input |
ATX PSU |
| Temperature |
Operation: 0℃~60℃, Storage: -25℃~75℃ |
|
Relative Humidity |
Operation: 10%~90%, Storage: 5%~95%, non-condensing |
Intel H81 chipset, 12*COM, 10*USB, 2*LAN, 2*VGA, 1*Mini-PCIe (Wifi Supported)
