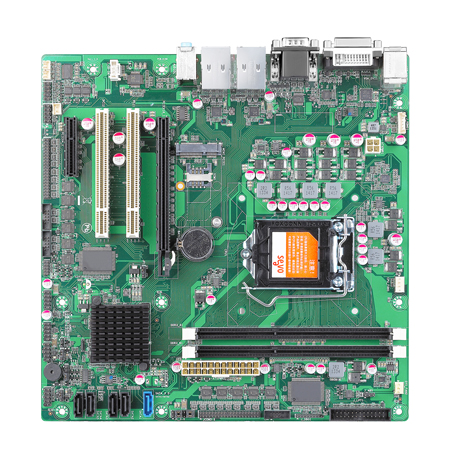

Intel LGA1155全系列处理器, 12*COM, 12*USB, 2* LAN, 2*PCI-E, 2*PCI, 2*VGA, 1*DVI
|
General |
|
|
CPU |
Intel® Pentium®/ Celeron®/ 2nd and 3rd Generation CoreTM i3/i5/i7 CPU, LGA1155 |
|
Chipset |
Intel® B75 Chipset, TDP 6.7W |
|
Memory |
Up to 16 GB DDR3 1600/1333/1066 MHz, 2*DIMM |
|
Storage |
1*SATA 3.0, 4* SATA 2.0 |
|
Expansion Interface |
1*PCI-E 16X, 1*PCI-E 4X, 2* PCI, 1*Mini-PCIe (Wifi/3G/4G Supported) |
|
BIOS |
AMI UEFI BIOS |
|
System |
Windows XP/7/8/10, Linux |
|

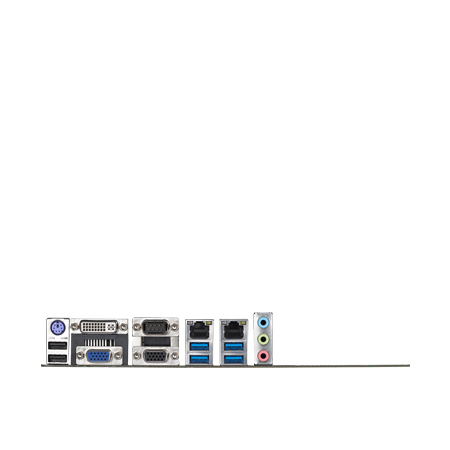

I/O Interface |
|
|
Serial Port |
12*RS232 (COM2 RS485 optional) |
|
USB |
4*USB 3.0, 8*USB 2.0 (6*on rear I/O, 6*header) |
| Ethernet |
2*Realtek® PCI-E LAN for 1000Mbps |
|
Audio |
Realtek® ALC662 5.1 channel HDA Codec, supports MIC/Line-out Ports 1*Amplifier |
|
PS/2 |
1*PS/2 (Keyboard Supported) |
|
Parallel Port |
1*LPT |
|
GPIO |
8 programmable GPIO |
|
Feature Interface |
Null |
|
Display |
|
|
Display Interface |
2*VGA: max resolution up to 1920*1200@60Hz
|
|
Multiple Display |
Triple |
|
Mechanical & Environment |
|
|
Dimension |
Micro-ATX, 244*244mm |
|
Power Input |
ATX PSU |
| Temperature |
Operation: 0℃~60℃, Storage: -25℃~75℃ |
|
Relative Humidity |
Operation: 10%~90%, Storage: 5%~95%, non-condensing |
